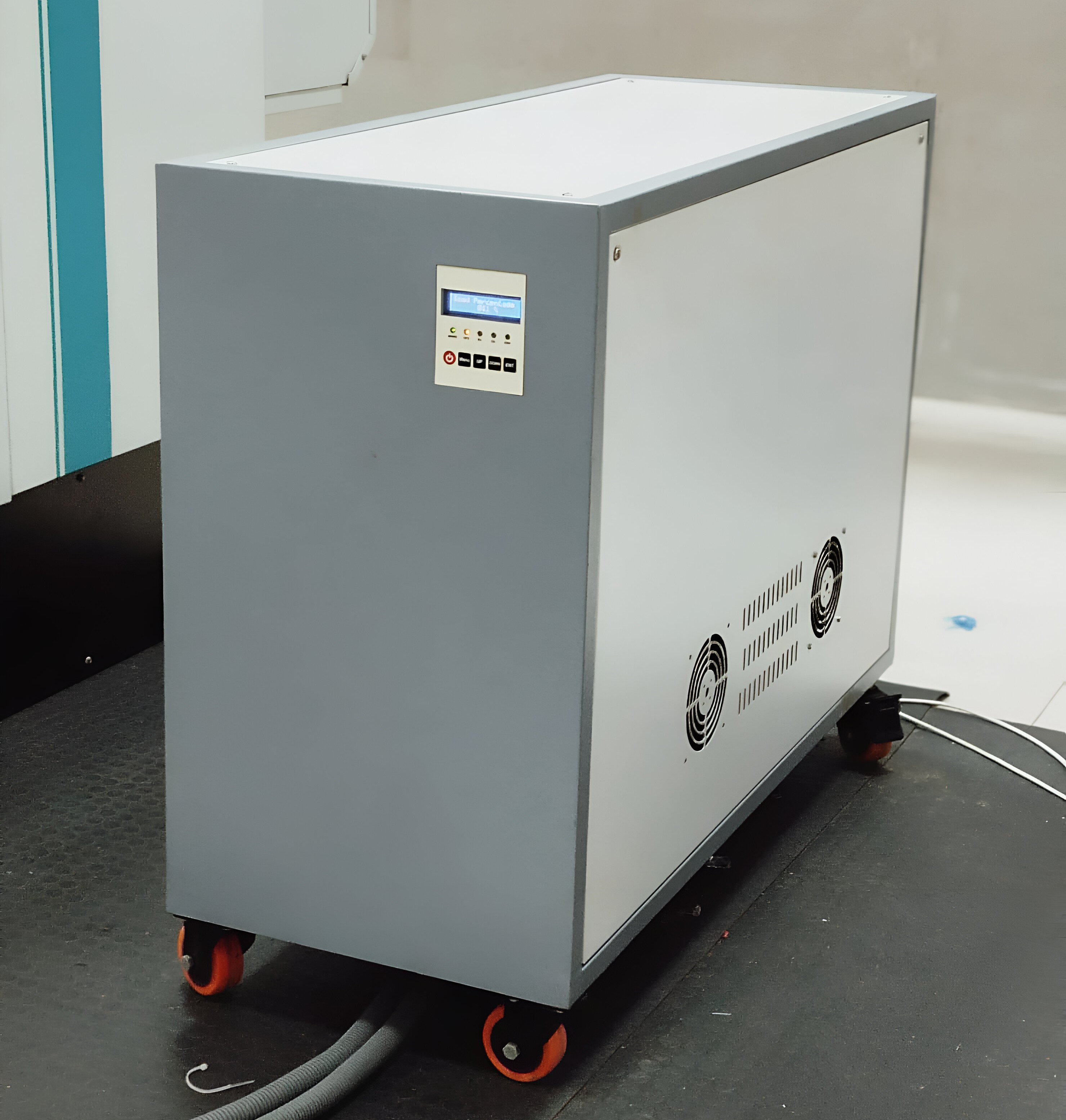

Online UPS
Important Benefits:
- Innovated Own Design.
- Rugged Topology, IGBT Based
- 3 PH Sensing, Built in True ARD
- Control Through UPS Display
- Event Log-Up to 100 Events (e.g. High Voltage, Low Voltage etc.)
- Compatible With Solar On Grid/Off
- Grid Systems (Can be Customized With Nominal Extra Cost)
Features
- Double Conversion IGBT Based On-line Technology
- Fully Digital DSP Control Offers Extreme Fast Trip Conditions Which Protects Power Devices From Damage
- Wide Input Voltage Range and UPS Operation Free From Phase Reversal
- User Friendly LCD Interface Showing All Parameters and Indications
- Fully Digital Algorithm and Pre-Set Free Setting
- Advanced Battery Management System
- Short Circuit and Overload Protection
- Event and Error Log With Real Time Clock
- Manual Bypass Mode
- Available in Balance and Unbalance System
- Less Number of Cards Becomes Easy For Servicing
- In House R&D and Complete Manufacturing Set-up
| Technical Specification | |||||||
| Product | EKVA /72V | BKVA /96V | 10KVA /120V | 12KVA /144V | 15KVA /180V | 20KVA /240V | 25KVA /240V |
| Capacity(in KVA) | 6 | 8 | 10 | 12 | 15 | 20 | 25 |
| DC Voltage | 72 | 96 | 120 | 144 | 180 | 240 | 240 |
| Input Voltage Range | Singal phase 180V AC-260V AC, Three phase 300VAC-450VAC, 50Hz± 2Hz | ||||||
| Output Voltage | Singal phase 230VAC± 1%, Phase to Phase 415 VAC, 50Hz 2Hz | ||||||
| Technology | Digital Signal Processor(DSP) based IGBT technology | ||||||
| Battery Charge | Reverse charging technology | ||||||
| Power Factor | Unity for mains mode | ||||||
| Changeover Time | 10 to 40 sec user settable | ||||||
| Overload Capability | 101% to 120% for 10min to 1sec, 120% for 0.3sec | ||||||
| Protections | Input high, Input Low, Over load, Output Short Circuit, Battery low Trip | ||||||
| Effciency | Mains mode: 100% Battery mode:>_88% | ||||||
| Servo Motor Drive | Triac based drive for AC step synchronous motor | ||||||
| LCD Display | Mains Input Voltage, load voltage, load current, battery voltage, battery | ||||||
| LCD Indication | Mains Mode, Battery Mode, Battery low, Over load, Sibgle phase/Phase reverse | ||||||
| Audibla Alam | Mains Fail 15 Sec, Battery Low pre-alarm @ 80% Discharge, Battery low trip | ||||||
| Operating Temperature | 0-50 C | ||||||
| Misc | Events/Errors.logging 100 events,real time clock | ||||||
